🧭 Tourvisto

AI-assisted travel itinerary planner with a public trips catalog and an admin dashboard.

Generates multi-day trip plans with Gemini, stores them in Appwrite, and sells trips via Stripe payment links.

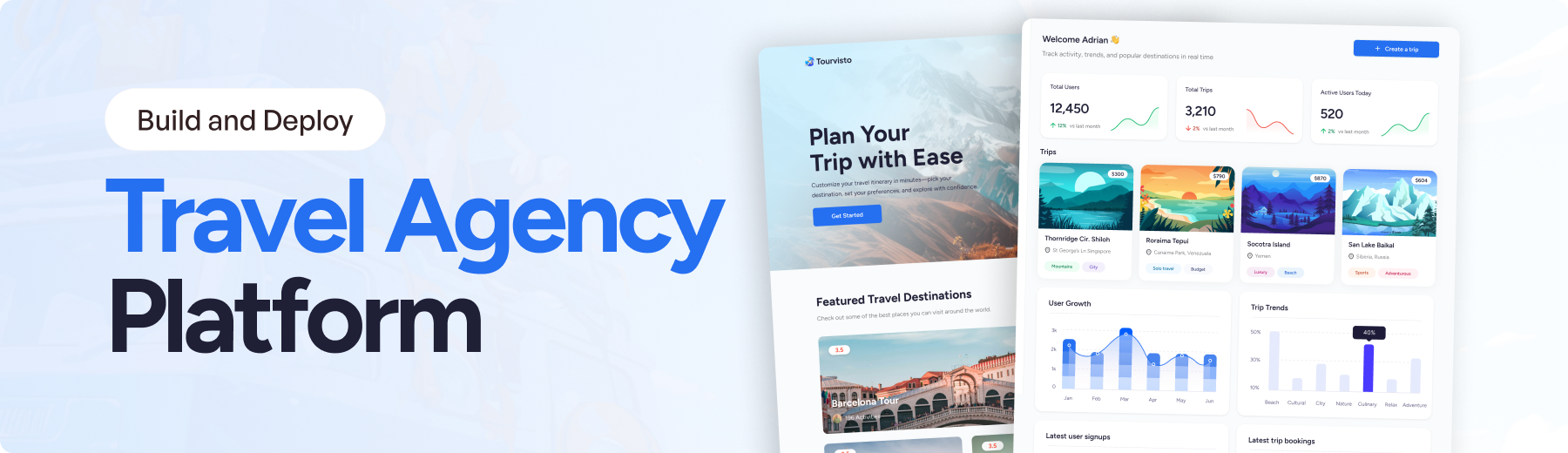

🖼️ Preview / Screenshot

Preview

📌 What This Project Is

AI-powered travel itinerary generator for multi-day trips.
Public browsing experience for trip discovery and details.
Admin dashboard for user management, trip creation, and analytics.
Google OAuth sign-in handled through Appwrite.

🧱 Tech Stack

Core Framework

React
React Router (SSR, loaders, actions)

UI / Rendering

Vite
Tailwind CSS
Syncfusion React UI (charts, grids, buttons, maps, navigation)
canvas-confetti

Data / Services

Appwrite (Auth, Database)
Stripe (payment links)
Google OAuth (via Appwrite)

AI / ML

Google Gemini via @google/genai

External APIs

Unsplash API (trip imagery)
REST Countries API (country list)

Tooling

TypeScript
Prettier

Infrastructure

Docker

🗺️ Architecture Overview

The app is a React Router SSR application with public and admin route layouts. It uses Appwrite for authentication and data storage, generates itineraries on the server via Gemini, enriches trips with Unsplash images, and creates Stripe payment links for checkout.

graph TD
  User[User or Admin] --> UI[React Router UI]
  UI -->|Appwrite SDK| Appwrite[(Appwrite Auth + Database)]
  UI -->|OAuth redirect| GoogleOAuth[Google OAuth]
  UI -->|POST /api/create-trip| CreateTrip[Server Action]
  CreateTrip --> Gemini[Gemini API]
  CreateTrip --> Unsplash[Unsplash API]
  CreateTrip --> Appwrite
  CreateTrip --> Stripe[Stripe API]

🗂️ Project Structure

.
├─ app/
│  ├─ routes/
│  ├─ app.css
│  └─ root.tsx
├─ assets/
├─ components/
├─ constants/
├─ lib/
│  ├─ appwrite/
│  └─ stripe/
├─ public/
├─ types/
├─ utils/
├─ react-router.config.ts
├─ vite.config.ts
├─ package.json
└─ Dockerfile

app/ React Router routes, layouts, and global styles.
assets/ Static images and icons used by the UI.
components/ Reusable UI building blocks.
constants/ UI constants and chart/config values.
lib/ Integrations for Appwrite and Stripe.
types/ Global and environment type declarations.
utils/ Utility helpers for parsing and formatting.

🧩 Core Modules

app/routes.ts Purpose: defines all public, admin, and API routes. Interactions: maps route paths to UI and server action modules. Design decisions: central route config for layout composition.

app/routes/api/create-trip.ts Purpose: server action that generates and stores a trip. Interactions: calls Gemini, Unsplash, Appwrite, and Stripe. Design decisions: stores trip details as JSON and adds a payment link.

lib/appwrite/client.ts Purpose: Appwrite SDK client setup and configuration. Interactions: used by auth, trips, and dashboard queries. Design decisions: reads Appwrite configuration from import.meta.env.

lib/appwrite/auth.ts Purpose: Google OAuth login, session handling, and user persistence. Interactions: Appwrite Account, Users collection, and Google People API for profile images. Design decisions: creates a user document on first sign-in.

lib/stripe/index.ts Purpose: Stripe product, price, and payment link creation. Interactions: invoked by the create-trip action. Design decisions: redirect URL built from VITE_BASE_URL.

app/routes/admin/index.tsx Purpose: admin dashboard with stats, charts, and recent trips. Interactions: pulls stats and lists from Appwrite and renders Syncfusion charts. Design decisions: aggregates stats in lib/appwrite/dashboard.ts.

utils/parse-markdown-to-json.ts Purpose: converts AI responses into JSON when formatting varies. Interactions: used by the create-trip action before persistence. Design decisions: tolerates code fences and partial JSON strings.

🔄 Runtime Flow

Trip creation flow (admin):

sequenceDiagram
  actor Admin
  Admin->>UI: Fill trip form and submit
  UI->>API: POST /api/create-trip
  API->>Gemini: Generate itinerary JSON
  API->>Unsplash: Fetch destination images
  API->>Appwrite: Store trip details
  API->>Stripe: Create product and payment link
  API-->>UI: Return trip id
  UI-->>Admin: Redirect to trip detail page

⚙️ Setup & Installation

Prerequisites:

Node.js (Dockerfile uses Node 20)
Appwrite project with Users and Trips collections
Syncfusion license key
Google OAuth configured in Appwrite (for sign-in)

Install dependencies:

npm install

▶️ Running the Project

Development:

npm run dev

Production build and server:

npm run build
npm run start

Type checking:

npm run typecheck

Docker (optional):

docker build -t tourvisto .
docker run -p 3000:3000 tourvisto

🔐 Configuration

Environment variables are loaded from .env.local for Vite and from the runtime environment for server actions.

Variable	Description	Required
`VITE_SYNCFUSION_LICENSE_KEY`	Syncfusion license key for UI components	Yes
`VITE_APPWRITE_API_ENDPOINT`	Appwrite endpoint URL	Yes
`VITE_APPWRITE_PROJECT_ID`	Appwrite project ID	Yes
`VITE_APPWRITE_DATABASE_ID`	Appwrite database ID	Yes
`VITE_APPWRITE_USERS_COLLECTION_ID`	Appwrite users collection ID	Yes
`VITE_APPWRITE_TRIPS_COLLECTION_ID`	Appwrite trips collection ID	Yes
`VITE_BASE_URL`	Base URL for Stripe redirect after payment	Yes
`GEMINI_API_KEY`	Google Gemini API key	Yes
`UNSPLASH_ACCESS_KEY`	Unsplash access key	Yes
`STRIPE_SECRET_KEY`	Stripe secret key for server-side calls	Yes

Optional local OAuth credentials file: oauth.json.local for Google OAuth configuration in Appwrite.

🚀 Usage

Sign in with Google at /sign-in.
Admin users can open /dashboard to view stats and create trips.
Use the trip creation form to generate an itinerary and pricing.
Browse trips on the homepage and open a trip to access the Stripe payment link.

⚠️ Limitations

AI output parsing is best-effort and depends on Gemini returning valid JSON.
Payment success relies on Stripe redirect only; no webhook verification is implemented.
Trips are stored as a JSON string in Appwrite, which limits field-level querying.
No caching layer is implemented for external API calls.

🔮 Future Improvements (Optional)

Add Stripe webhook verification and booking status updates.
Validate AI output with a schema before storing.
Normalize trip fields in Appwrite for better querying and analytics.
Introduce caching for country lists and image searches.

📄 License

MIT License. See .
